Current writing devices using eye movements only allow users to choose from words or letters that are displayed on a screen but do not give them the freedom to draw their own figures. Until now, this was thought to be impossible. In fact, although the eye can follow a moving object very efficiently, it is not capable of performing smooth, regular movements in front of a static background. Any attempt in this sense results in a succession of quite irregular jerks.
To obtain smooth trajectories of the eye, Jean Lorenceau, CNRS researcher at the Centre de Recherche de l'Institut du Cerveau et de la Moelle Epinière (CNRS/UPMC/Inserm) came up with the idea of using a visual illusion called reverse-phi, which has been known since the 1970s but which has not until now found any applications. The illusion occurs when several hundred disks whose luminance(2) varies over time at a frequency of around 10-15 Hertz (Hz) are displayed on a screen. When the user's eyes move over this flickering background, the subject has the clear impression that the disks move with the displacement of the eyes. Since the human eye is capable of following with precision moving objects, the illusory movement of the disks induced by the movement of the eyes gives them a sort of moving support, allowing them to realize regular and non-jerky trajectories. An oculometer(1) records the movements of the user's eye and very simple software enables these movements to be visualized on a screen. Two to four training sessions lasting around 30 minutes are all that are needed to be able to manage eye movements and draw letters. In tests carried out, subjects firstly learned to perceive the reverse-phi movement then to “cling” onto this movement somewhat like a surfer who “clings” onto a wave. Then, the subjects progressively learned to “surf” on this visual illusion of movement to guide their eye movements at will. Thanks to this system, well-trained individuals can write with their eyes at more or less the same speed as with their hand. Although the concentration required to draw figures can become tiring in the beginning, training enables automatisms to be created that facilitate writing.
This device could give persons suffering from limb paralysis the means to personalize their writing, write their own signature and, more generally, to express themselves and communicate in a more creative and free manner. The next step in this research will consist in proposing to persons suffering from amyotrophic lateral sclerosis to use the invention. However, Lorenceau believes that this system opens the way to other applications: it could be used to train pilots, surgeons, sportsmen, artists(3) and other persons whose activities require precise oculomotor control. It could also make it possible to design security systems based on the recognition of eye movements.
© Lorenceau, CNRS
© Lorenceau, CNRS

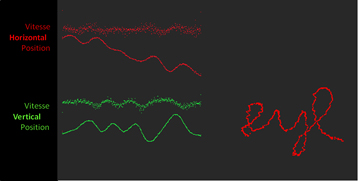

The left hand side of this figure shows the position (solid line) and the speed (dotted line) of horizontal (red) and vertical (green) eye movements. On the right: the word “eye” corresponds to these traces.
© Lorenceau, CNRS

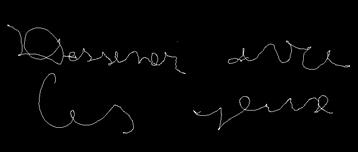

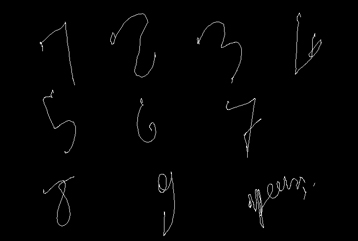

Letters and the first name “Jean” written with the device.
